18350 vs 21700 Flashlight Batteries: Which Size Is Better for EDC?
Choosing between an 18350 and a 21700 flashlight battery is mainly a trade-off between a shorter, more pocketable flashlight and roughly three to four times more stored battery energy for extended use. If you mostly reach for your light to check a lock, find a dropped item, or inspect a dark corner, a compact 18350 setup easily meets your needs. If those brief checks turn into longer evening walks, work shifts, or repeated outdoor inspections, the additional reserve of a 21700 cell becomes far more valuable.
Neither format is automatically better for everyday carry (EDC). The right choice depends on the complete flashlight system: how comfortably it sits in your pocket, how long it sustains your preferred brightness after thermal step-down, and whether its beam profile suits your environment. Battery size shapes those characteristics, but it does not determine them on its own.
This guide explains how 18350 and 21700 lithium-ion batteries affect EDC dimensions, watt-hour capacity, sustained output, and physical compatibility. It also examines the two supported battery configurations of the SPERAS M4 V3, using manufacturer specifications alongside independent runtime and thermal findings reported by 1lumen, as well as lithium-ion chemistry standards from Battery University.
For a broader look at beam patterns, switches, and carry ergonomics, see our complete EDC flashlight buying guide and our compact EDC flashlight guide. Here, the focus is specifically on selecting the right battery format for daily, work, and outdoor use.
Who This Guide Is For
- Anyone comparing 18350 vs 21700 batteries for EDC flashlights.
- Users wondering whether an 1100mAh 18350 cell provides enough runtime for daily tasks.
- Buyers balancing jeans-pocket comfort against sustained high-lumen illumination.
- People considering a manufacturer-supported 21700 battery extension tube (such as the TB217).
- Flashlight owners checking replacement cell dimensions, continuous discharge ratings (Amps), and USB-C charging compatibility.
Quick Answer: Is 18350 or 21700 Better for EDC?
Choose an 18350 configuration if your daily tasks are brief (1 to 5 minutes at a time), USB-C charging is readily accessible, and an ultra-short flashlight (under 90mm) is more comfortable in your pocket. Choose a 21700 configuration if you need sustained 500–800+ lumen output, multi-hour endurance for work shifts or hunting, or maximum reserve between charges.
Always evaluate the complete flashlight—including its overall length, bezel diameter, installed weight, and pocket clip depth. A larger battery does not automatically make every flashlight brighter, and a shorter tube does not reduce the width of a large reflector head.
18350 and 21700 batteries are not freely interchangeable. A single flashlight can use both formats only when the manufacturer explicitly engineers a compatible extension tube and driver circuit for both cell sizes.
1. 18350 vs 21700 Battery Specs: Dimensions, Capacity (mAh & Wh), and Weight
An 18350 lithium-ion cell measures approximately 18 mm in diameter and 35 mm long, whereas a 21700 cell measures approximately 21 mm in diameter and 70 mm long. According to industry nomenclature documented by Battery University (BU-301a), these five-digit numbers represent nominal bare-cell dimensions, not a fixed capacity. Adding an internal protection circuit board (PCB) and a button-top terminal can increase a finished battery's length by 3 mm to 6 mm.
For a flashlight engineer, the half-length 18350 cell allows for a dramatically shorter handle. Conversely, the larger internal volume of a 21700 cell stores roughly 3.5 to 4.5 times more electrical energy, though it requires a wider, longer battery tube. The table below compares the core technical parameters of both formats:
| Specification / Factor | 18350 Lithium-Ion Format | 21700 Lithium-Ion Format |
|---|---|---|
| Nominal Bare Cell Dimensions | 18 mm diameter × 35 mm length | 21 mm diameter × 70 mm length |
| Typical Capacity & Stored Energy | 800 mAh – 1,200 mAh (~3.0 Wh – 4.4 Wh at 3.7V) | 4,000 mAh – 5,000 mAh (~14.4 Wh – 18.5 Wh at 3.6V/3.7V) |
| Typical Bare Cell Weight | ~22 g – 27 g (lightweight pocket carry) | ~68 g – 75 g (adds thermal mass and weight) |
| Primary EDC Advantage | Supports ultra-short flashlight bodies (under 90 mm) | Sustains higher continuous current and multi-hour runtimes |
| Representative SPERAS Examples | SPERAS M4 V3 (Standard 18350 body setup) | SPERAS E21, SPERAS PZ21, and M4 V3 (with TB217 extension tube) |
Does the Battery Number Tell You Its Exact Capacity or Drain Rating?
No. While a 21700 cell always stores substantially more energy than an 18350 cell of similar chemistry, neither format has a single universal milliamp-hour (mAh) or continuous discharge rating (Amps). Cell manufacturers trade maximum capacity against internal resistance and current delivery.
This distinction is critical in high-lumen flashlights. A cell with a high capacity rating is unsuitable if it cannot safely deliver the amperage required by the flashlight's Turbo mode. Always match both the physical dimensions and the continuous discharge requirements specified by the manufacturer.
How to Compare Stored Energy Accurately (Watt-Hours)
When comparing total stored energy across battery formats, calculate watt-hours: nominal energy (Wh) = capacity (Ah) × nominal voltage (V). (Divide milliamp-hours by 1,000 to get amp-hours.)
For example, a standard 1,100 mAh 18350 cell at 3.7V holds roughly 4.07 Wh of energy, whereas a 5,000 mAh 21700 cell at 3.6V holds 18.0 Wh—more than four times the energy reserve. However, stored energy alone does not dictate exact runtime; driver efficiency and thermal step-down behavior determine how fast that energy is consumed.
2. Is an 18350 Flashlight Enough for Everyday Carry (EDC)?
Yes—an 18350 flashlight is more than enough for everyday carry when your typical lighting tasks are brief and in-light USB-C charging is convenient. The decision depends far less on having the largest battery on the market and far more on whether the light covers your daily routine without weighing down your pocket.
Illuminating a keyhole, checking a fuse box, or looking under a car seat requires only 30-second to 2-minute bursts of light. Keeping a forest trail lit for three hours is an entirely different energy demand, even if some users group both activities under 'EDC'.
When a Shorter 18350 Setup Makes the Most Sense
- You primarily use your flashlight for intermittent bursts rather than continuous hour-long sessions.
- A full-length 130mm–150mm flashlight digs into your hip when sitting or bending over.
- You can easily top up the battery via USB-C at your desk, in your vehicle, or with a power bank.
- The flashlight's medium mode (typically 200–400 lumens) provides over an hour of cumulative runtime with reserve to spare.
For urban carry, shaving 30 mm to 40 mm off the body length is a game-changer: a compact flashlight that is comfortable enough to carry in your jeans pocket every single day is infinitely more useful than a heavy 21700 light left at home.
When Stepping Up to a 21700 Battery Becomes Necessary
A 21700 configuration is worth the extra size if you frequently end your shift with a depleted battery indicator, require sustained high-lumen illumination, or spend weekends off the grid. Its 4,800 mAh to 5,000 mAh reserve eliminates battery anxiety during prolonged inspections or cold-weather outings.
3. 18350 vs 21700 Runtime and Sustained Brightness After Step-Down
A comparable 21700 cell delivers significantly longer runtime than an 18350 when operating at the same lumen level, and its larger thermal mass often allows the flashlight to sustain a higher flat output after initial thermal step-down.
Evaluating runtime requires looking beyond the numbers printed on a retail box. Under the ANSI/PLATO FL 1 testing standard, 'total runtime' is measured until output drops to just 10% of the initial reading—which means a flashlight that steps down heavily after two minutes can still claim a long total runtime.
Start with the Brightness Mode You Actually Use
If you rely on a medium or high work mode (400 to 800 lumens), compare how long each battery sustains that specific plateau rather than focusing solely on the 1-minute Turbo peak. A rigorous runtime evaluation examines four elements:
- The cell specification: exact battery model, mAh/Wh capacity, and continuous discharge rating.
- The initial output: measured lumens and candela at turn-on (30 seconds per ANSI FL 1).
- The step-down curve: when thermal regulation intervenes and what flat lumen level the light holds afterward.
- The test conditions: ambient temperature, active cooling, and voltage cutoff behavior.
Maximum Runtime Is Not Runtime at Maximum Output
A published 'maximum runtime' (such as 100+ hours) always refers to the lowest Eco or Moonlight mode. High and Turbo modes generate intense heat at the LED and driver, triggering automatic step-downs to protect both the electronics and the user's hand. Runtime graphs reveal the complete picture: the initial Turbo peak, the thermal drop, the regulated horizontal plateau, and the final decline as the cell reaches low-voltage cutoff.
Does a 21700 Battery Automatically Make a Flashlight Brighter?
Not automatically. Peak lumen output depends on the LED emitter, driver circuitry, and reflector/optic design. However, because a high-drain 21700 battery experiences less voltage sag under heavy amperage loads than a small 18350 cell, some modular flashlights unlock both higher peak lumens and higher sustained brightness when paired with a 21700 tube.
4. Is a 21700 Flashlight Too Large for Daily Pocket Carry?
A 21700 flashlight is not automatically too bulky for EDC, but it transitions from 'disappears in the fifth pocket' to a dedicated front-pocket or belt-holster tool. Comfort depends on the relationship between tube length, head diameter, weight, and clip geometry.
Check the Complete Carry Geometry
- Overall length: An 85 mm 18350 light sits entirely above the crease of your hip when seated, whereas a 120 mm–150 mm 21700 light spans the full depth of a front pocket.
- Bezel/head diameter: In a modular thrower, the reflector head is the widest point. Shortening the battery tube saves length, but the head diameter remains identical.
- Installed weight: Switching from an 18350 to a 21700 tube and cell typically adds 55 g to 70 g (2 to 2.5 oz) to your pocket.
- Pocket clip depth: A deep-carry two-way clip keeps a longer 21700 tube riding low and secure against the pocket seam.
For a deeper breakdown of how bezel width and tube length affect daily comfort, read our compact EDC flashlight guide.
5. Can You Use a 21700 Battery in an 18350 Flashlight? Extension Tube Rules
Only if the flashlight manufacturer explicitly engineers and supports a 21700 modular configuration. Because a 21700 cell is 3 mm wider and 35 mm longer than an 18350 cell, it cannot fit inside a standard 18350-only body tube.
Why an Authorized Modular System Is Required
True cross-compatibility requires matching thread pitch, internal tube bore diameter, spring tension, driver voltage range, and in-light charging current. Before converting a modular flashlight, verify these six points:
- Confirm that the manufacturer officially lists both 18350 and 21700 formats as supported.
- Use only the exact replacement body or extension tube engineered for that model (such as the TB217 tube for the SPERAS M4 V3).
- Verify the required working voltage (single 3.6V/3.7V Li-ion cell) and continuous discharge current.
- Check whether the contacts require button-top or flat-top terminals.
- Confirm whether longer protected 21700 cells fit comfortably without crushing the contact springs.
- Verify that the built-in USB-C charging circuit supports recharging both battery configurations safely.
Never force an oversized cell into an unapproved tube or use makeshift conductive spacers. A modular system engineered from the ground up eliminates guesswork and preserves IP68 sealing across both configurations.
6. Real-World Modular Test: SPERAS M4 V3 (18350 vs 21700 Performance)

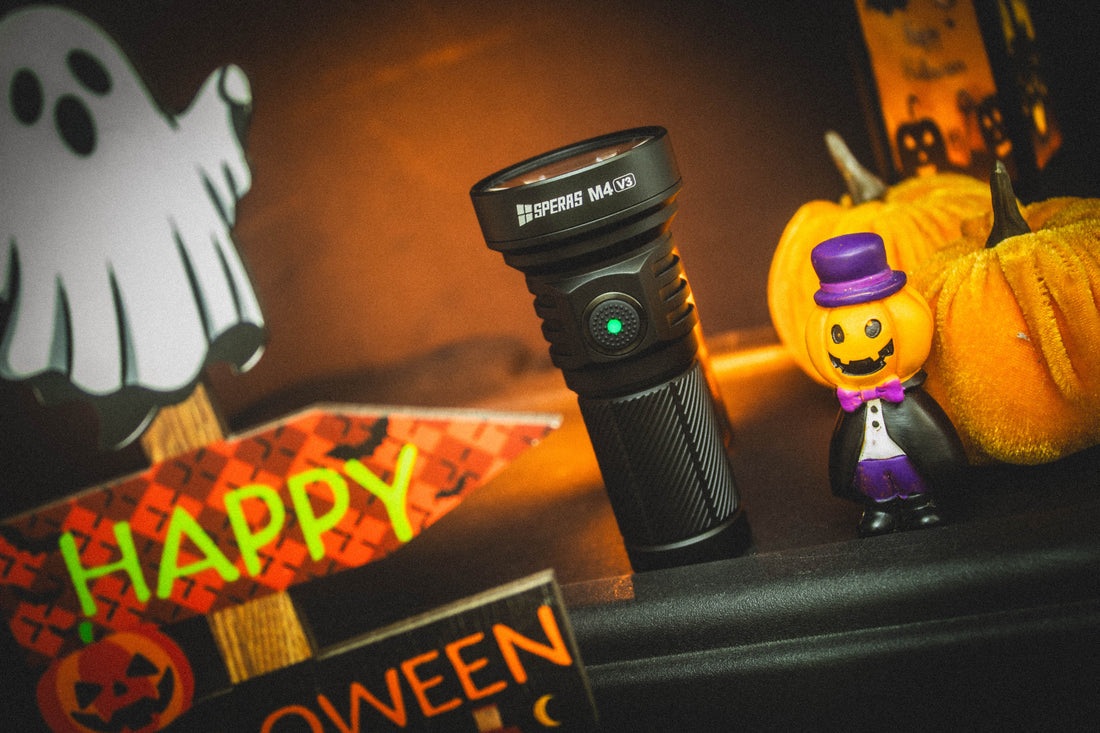

The SPERAS M4 V3 demonstrates this exact modular concept in a single compact thrower. Out of the box, it runs on a standard 1,100 mAh 18350 battery; pairing it with the optional TB217 extension tube and a SPERAS S50 21700 5000mAh battery transforms it into a long-runtime 21700 searchlight.
The table below compares manufacturer-rated specifications alongside empirical dimensions and Turbo-start runtime data recorded in the independent 1lumen SPERAS M4 V3 review:
| Performance Metric | Standard 18350 Configuration | Extended 21700 Configuration (with TB217) |
|---|---|---|
| Manufacturer-Stated Max Output & Throw | Up to 2,200 lumens | 700 m throw | Up to 2,800 lumens | 700 m+ throw |
| Overall Length (Measured by 1lumen) | 85.6 mm (ultra-compact pocket length) | Approximately 117.5 mm (still shorter than most 21700 lights) |
| Weight with Battery (Measured by 1lumen) | 117 g (approx. 4.1 oz) | Varies by 21700 cell selected (adds ~50–60 g) |
| Sustained Output After Turbo Step-Down (1lumen) | Settled at ~400 lumens after ~1 min 20 sec | Sustained ~800 lumens across the main regulated plateau |
| Total Runtime in Turbo-Start Test (1lumen) | Approximately 1 hour 20 minutes | More than 2 hours 40 minutes (2× duration at double the lumens) |
Source note: Maximum lumen figures are manufacturer ratings; physical dimensions, installed weight, and runtime curves are attributed to the linked 1lumen independent review. A Turbo-start test measures total duration including thermal step-downs, not continuous operation at peak Turbo brightness.
What the 1lumen Runtime Curves Mean for Real-World Use
The most important takeaway from the graphs above is not just that the 21700 setup runs twice as long—it is that the 21700 configuration sustains roughly 800 lumens after step-down, compared to roughly 400 lumens on the 18350 setup.
In practical terms, adding the TB217 tube and a 21700 battery gives you both twice the sustained brightness and twice the total runtime (over 2 hours and 40 minutes vs. 1 hour and 20 minutes). For quick evening errands, the 85.6 mm 18350 setup is unbeatable for pocketability; for night hikes, property searches, or extended work shifts, swapping to the 21700 tube unlocks true full-size performance.
Is a Modular 18350/21700 Setup Worth Choosing?
A modular flashlight offers the highest value when your lighting needs genuinely alternate between urban pocket carry and demanding field work. Rather than buying two separate flashlights, you can carry the 85.6 mm body Monday through Friday and thread on the 21700 tube before a weekend camping or hunting trip—recharging either setup through the exact same built-in USB-C port.
7. 18350 vs 21700 by Use Case: Daily Carry, Work Patrol, and Outdoor Hunting
Matching a battery format to your routine becomes straightforward when you start with your typical session duration and working distance. The table below outlines how 18350 and 21700 configurations align with different real-world scenarios:
| Use Pattern / Scenario | Recommended Battery Format | What to Prioritize | Matching SPERAS Examples |
|---|---|---|---|
| Brief daily tasks with easy USB-C charging (Urban EDC) | 18350 (or slim 18650) | Sub-90mm pocket comfort, low weight (<120g), and quick USB-C top-ups | SPERAS M4 V3 (Standard 18350 setup) or SPERAS EST16 |
| Repeated inspections, security patrol, or long work shifts | 21700 (5000mAh) | Sustained 500–800 lm output, thermal mass, and power bank backup | SPERAS E21 (2000lm + 21700 Power Bank) or M4 V3 (with TB217) |
| Extended outdoor hiking, camping, and night hunting | 21700 (4800–5000mAh) or Modular Setup | High candela / 700–900m throw, adjustable zoom, and spare 21700 cells | SPERAS PZ21 (2700lm / 900m Zoomable 21700) or M4 V3 (21700 setup) |
| Vehicle glovebox & home emergency readiness | 21700 (preferred for long shelf reserve) | Eco/Low mode endurance (up to 500 hrs), two-way USB-C power bank, mechanical lockout | SPERAS E21 or SPERAS PZ21 |
8. Replacement Battery Compatibility, Discharge Current, and Charging Checklist
Once you select a battery configuration, verify that any spare or replacement lithium-ion cell matches the flashlight's physical and electrical tolerances:
- Finished physical dimensions: Check exact diameter and length in millimeters, accounting for built-in protection circuits or USB ports on the cell.
- Continuous Discharge Rating (CDR): High-output flashlights (2,000 to 3,000+ lumens) require high-drain cells rated for 10A to 20A+ continuous discharge. Standard low-drain cells may trip protection circuits on Turbo.
- Terminal style: Follow manufacturer specifications for button-top vs. flat-top cells to ensure reliable electrical contact without crushing springs.
- In-light vs. external charging: Quality external smart chargers (supporting CC/CV 4.20V termination per Battery University BU-409) can charge both 18350 and 21700 cells if their sliding bays fit 35 mm to 75 mm lengths.
- Safe spare storage: Always transport loose spare batteries in a non-conductive plastic case away from keys, coins, or metal tools.
9. Frequently Asked Questions About 18350 and 21700 Flashlight Batteries
References & Technical Standards
- 1lumen Independent Review: SPERAS M4 V3 (18350 vs. 21700 Runtime, Thermal Step-Down & Beam Tests) — Primary empirical source for measured dimensions, weight, and comparative runtime curves.
- Battery University (BU-301a): Types of Lithium-ion & Cylindrical Cell Formats — Technical reference for 18350/21700 dimensional nomenclature, energy density, and discharge characteristics.
- Battery University (BU-409): Charging Lithium-ion Batteries — Reference for CC/CV charging voltage thresholds and cell care guidelines.
- ANSI/PLATO FL 1 Flashlight Basic Performance Standard — Industry testing methodology for defining lumen output, throw distance, and runtime endpoints.
