Flashlight Lumens vs Candela: How Throw Distance and Beam Pattern Really Work | SPERAS
Flashlight specifications often look straightforward until two lights with nearly identical lumen ratings behave completely differently outdoors. One spreads illumination across a wide foreground trail, while the other concentrates its output into a piercing central hotspot that reaches hundreds of meters downrange. The numbers are not contradictory—they are measuring entirely different parts of the optical system: total light volume versus directional beam intensity.
This guide explains flashlight lumens, candela, throw distance, and beam pattern as a connected optical system. Using photometric definitions from the National Institute of Standards and Technology (NIST), testing rules from the ANSI/PLATO FL 1 standard, and independent integrating-sphere measurements from 1lumen, we will show you how to verify a spec sheet mathematically and choose the right beam for everyday carry (EDC), work patrol, and outdoor hunting.
For a broader look at battery formats, charging workflows, and carry ergonomics, see our complete EDC flashlight buying guide and our compact EDC flashlight guide.
Who This Guide Is For
- Buyers comparing lumens vs candela vs throw distance for EDC, tactical work, or hunting flashlights.
- Users wondering why two 2,000-lumen flashlights produce completely different downrange visibility.
- Outdoor enthusiasts deciding between flood, balanced, fixed-throw, and adjustable zoomable beams.
- Readers who want to use the ANSI FL 1 0.25-lux formula to check whether a spec sheet is accurate.
- Flashlight owners comparing manufacturer ratings against independent 30-second integrating-sphere tests.
Quick Answer: Lumens vs. Candela vs. Throw Distance
Lumens measure total light output emitted in all directions (luminous flux). Candela measures peak beam intensity concentrated in the brightest single direction. Throw distance is the standardized distance at which the beam fades to 0.25 lux (roughly the brightness of a full moon on a clear night), calculated as the square root of (Candela ÷ 0.25).
In practice: prioritize lumens and wide spill for close-range tasks under 30 meters; prioritize high candela (60,000 to 200,000+ cd) for long-range target identification; and consider a candela-to-lumen ratio (cd/lm) of 5 to 15 cd/lm for general EDC, or 50+ cd/lm for dedicated outdoor throwers.
1. Lumens vs Candela: What Do Flashlight Lumens Actually Measure?
A lumen (lm) is the international unit of total luminous flux—it measures the total volume of visible light emitted by a flashlight after accounting for reflector, lens, and bezel losses. In laboratory testing (such as the ANSI/IES LM-79 integrating sphere method), the flashlight is placed inside a reflective sphere that captures all light leaving the front glass simultaneously.
The limitation is that a lumen rating tells you nothing about beam direction or concentration. An LED paired with a shallow, textured reflector spreads those lumens across a wide angle, whereas the exact same LED paired with a deep, smooth reflector or convex lens funnels those lumens into a tight, high-intensity shaft of light.
A Practical Analogy: Water Volume vs. Nozzle Pressure
Think of a garden hose: lumens represent the total gallons of water flowing per minute, while candela represents the water pressure at the nozzle. If you open the nozzle wide into a mist, you soak the plants directly in front of you (a flood beam). If you twist the nozzle into a narrow jet, the exact same flow rate shoots across the yard (a high-candela throw beam).
What Lumens Help You Judge—And What They Leave Out
- What lumens reveal: Total optical power available to light up an enclosed room, tent, or immediate workspace, as well as the approximate heat and battery drain class of the flashlight.
- What lumens cannot tell you: Peak downrange intensity (candela), maximum standardized beam distance, hotspot width, or how quickly thermal regulation will step down the brightness after 60 seconds.
2. What Is Candela (cd) and the Candela-to-Lumen Ratio?
Candela (cd) is the SI base unit of luminous intensity in a specific direction. As defined by NIST photometry standards, one candela equals one lumen per steradian (solid angle). In flashlight testing, peak beam intensity is measured at a set distance (typically 5, 10, or 20 meters) using a calibrated lux meter positioned at the brightest center of the hotspot, then converted via the inverse-square law:
Why Doubling Throw Distance Requires 4× the Candela
Because light spreads out according to the inverse-square law, doubling the rated throw distance of a flashlight requires four times as much candela—not twice as much. Under the ANSI/PLATO FL 1 standard, beam distance is defined as the distance at which peak illuminance drops to 0.25 lux:
| Rated ANSI Throw Distance | Required Peak Candela (at 0.25 lux) | Inverse-Square Scaling & Real-World Reference |
|---|---|---|
| 200 meters | 10,000 cd | 200² × 0.25 = 10,000 cd (Typical floody pocket EDC light) |
| 400 meters | 40,000 cd | Doubling throw from 200m to 400m requires exactly 4× the candela |
| 550 meters | 75,625 cd | 550² × 0.25 = 75,625 cd (Matches the rated spec of the SPERAS EST16) |
| 700 meters | 122,500 cd | 700² × 0.25 = 122,500 cd (Matches the rated spec of the SPERAS M4 V3) |
| 900 meters | 202,500 cd | 900² × 0.25 = 202,500 cd (Matches the focused rating of the SPERAS PZ21) |
| 1,000 meters | 250,000 cd | Kilometer-class reach requires 25× the candela of a 200m flashlight |
The Secret Metric Pros Use: Candela-per-Lumen Ratio (cd/lm)
Dividing a flashlight's peak candela by its lumen output reveals its candela-per-lumen ratio (cd/lm), which instantly tells you how the beam is shaped without even looking at a photo:
- Under 10 cd/lm (Flood Beam): Wide, soft illumination for close-up work and indoor walking.
- 10 to 35 cd/lm (Balanced / Tactical Beam): A defined central hotspot surrounded by generous peripheral spill (for example, the SPERAS E21 at ~13 cd/lm).
- 40 to 100+ cd/lm (Dedicated Thrower): Highly concentrated beam engineered to punch through darkness over ratusan of meters (for example, the SPERAS EST16 at ~47.3 cd/lm, the M4 V3 at ~55.7 cd/lm, and the zoomed PZ21 at ~75 cd/lm).
3. How Is Flashlight Throw Distance Calculated? (ANSI FL 1 Formula)
Throw distance is a standardized laboratory comparison figure based on 0.25 lux—it is not a guarantee that you can clearly identify objects at that full distance.
You can use the ANSI FL 1 formula in reverse to audit any flashlight specification sheet before buying. If a manufacturer claims a 700-meter throw distance, multiply 700 × 700 × 0.25 = 122,500 cd. If a manufacturer claims a 900-meter throw distance, multiply 900 × 900 × 0.25 = 202,500 cd. When both numbers are listed and match this equation, you know the specifications follow standardized optical math rather than guesswork.
4. Rated Throw Distance vs. Real-World Recognition Distance
In real-world outdoor conditions, your effective visual recognition distance is typically 30% to 50% of the rated ANSI FL 1 throw distance.
Why is there such a large gap between rated throw and practical visibility? Because 0.25 lux is extremely dim (equivalent to moonlight), while comfortably distinguishing a dark-colored animal against tree bark or reading a trail marker at night typically requires 1 lux to 5 lux of target illumination.
- At 0.25 lux (100% of rated throw): You can detect large reflective surfaces, retroreflective trail markers, or the silhouette of a building.
- At 1.0 lux (50% of rated throw): Because of the inverse-square law, cutting the distance in half quadruples the illuminance from 0.25 lux to 1.0 lux. For a 700m-rated light like the M4 V3, this means solid target visibility at 300 to 350 meters; for a 900m-rated light like the PZ21, it delivers clear observation at 400 to 450 meters.
- Atmospheric scatter (Backscatter): Fog, rain, dust, and humidity reflect light back toward your eyes. A wide flood beam creates a blinding white curtain in fog, whereas a high-candela thrower or focused zoom beam cuts through moisture with minimal foreground glare.
5. Flood vs. Throw vs. Zoomable Beam Patterns: Hotspot and Spill Explained
Every fixed-reflector flashlight beam consists of three zones: the central hotspot (focused by the reflector parabola), the corona (the transition ring), and the peripheral spill (light escaping directly from the LED without hitting the reflector).
Flood Beams: Maximum Peripheral Awareness
A flood beam prioritizes wide, even coverage for walking trails, inspecting electrical panels, or setting up camp. You can see your footing and your hands simultaneously without constantly sweeping the flashlight back and forth.
Throw Beams: Downrange Penetration
A throw beam funnels the majority of its lumens into a tight hotspot. In a traditional reflector thrower (like the SPERAS M4 V3 or EST16), you get an intense long-range center beam plus a usable ring of peripheral spill to keep your immediate surroundings visible.
Adjustable (Zoomable) Beams: Two Optical States in One Light
An adjustable-focus flashlight uses an aspheric convex lens that moves forward and backward relative to the LED. Zoomed out, it creates a completely uniform carpet of floodlight with zero central hotspot glare; zoomed in, it projects a pure long-range spotlight with zero foreground spill (preventing close-range tree branches from ruining your night vision during hunting).
6. Why Similar-Lumen Flashlights Have Different Throw: LED, Optic, and Thermal Limits
If two flashlights both produce 2,000 lumens, why might one reach 300 meters while the other reaches 750 meters? Four engineering variables govern the outcome:
- LED Emitting Surface Area (LES): Smaller, flat, domeless emitters (such as Luminus SFT40 or SFT25R LEDs) have much higher surface luminance (cd/mm²) than large, domed floody emitters, allowing optics to focus them into a tighter hotspot.
- Reflector Depth & Bezel Diameter: Doubling the internal diameter of a parabolic reflector quadruples its surface area, capturing and collimating a much higher percentage of sideways light into the forward hotspot.
- Optical Architecture: Smooth (SMO) reflectors maximize peak candela; Orange Peel (OP) textured reflectors smooth out beam rings for work use; and aspheric zoom lenses isolate flood from throw.
- Thermal Step-Down & Battery Drain: High-output LEDs generate rapid heat. As we detailed in our 18350 vs 21700 battery runtime guide, a larger 21700 body provides greater thermal mass and current delivery, sustaining higher lumens and candela after the initial 1-to-2-minute Turbo step-down.
7. How to Read a Flashlight Specification Sheet Step by Step
Instead of judging a flashlight by a single headline number, evaluate the specification table in this exact six-step order:
| Evaluation Step | Spec to Inspect | What It Tells You in the Real World |
|---|---|---|
| 1. Total Light Volume | Lumens (lm) across all modes | Check not just Turbo, but whether Medium/High (400–800 lm) fits your routine. |
| 2. Beam Concentration | Peak Candela (cd) & cd/lm Ratio | Divide cd by lm: <10 = flood, 10–35 = balanced, 40+ = dedicated long-range thrower. |
| 3. Practical Reach | ANSI Throw Distance ÷ 2 | Divide the rated 0.25-lux throw by 2 to estimate your 1-lux clear recognition range. |
| 4. Sustained Output | Runtime curve after step-down | Verify what brightness remains after 2 minutes when thermal regulation kicks in. |
| 5. Carry Geometry | Length, Head Diameter, Weight | High candela requires a wider reflector or lens head; check if it fits your pocket or holster. |
| 6. Power & Recharging | Battery Format & USB-C Port | Confirm standard replaceable cells (18350/18650/21700) and in-light USB-C charging. |
8. Manufacturer Specs vs. Independent 30-Second Testing (1lumen Data)
Why do independent flashlight reviewers measure lumens and candela at exactly 30 seconds after turn-on? Because under the ANSI/PLATO FL 1 standard, initial output and peak beam intensity must be recorded between 30 and 120 seconds after activation—preventing brands from advertising a fleeting 1-second startup flash that immediately plummets.
When you compare manufacturer ratings with independent lab reviews (such as those conducted by 1lumen using calibrated integrating spheres and lux meters), you gain a transparent view of how a production sample performs under standardized conditions.
9. Compact Fixed Thrower Case Study: SPERAS M4 V3 Real Measurements
What happens when an optical system is engineered to maximize candela while keeping total length under 86 mm? The SPERAS M4 V3 illustrates a dedicated compact fixed-reflector thrower. Out of the box with its 18350 tube, it is rated at 2,200 lumens, 122,500 candela (55.7 cd/lm ratio), and 700 meters of throw.
| Metric (Turbo Mode) | SPERAS Published Rating | 1lumen Measured (at 30 sec) | What the Data Shows |
|---|---|---|---|
| Luminous Flux (Output) | 2,200 lm (18350 setup) | 2,158 lm at 30 sec | Measured 30-second output was within 2% of the factory rating. |
| Peak Beam Intensity | 122,500 cd | 142,400 cd at 30 sec | The smooth reflector concentrated 16% more peak candela than rated. |
| Standardized Throw | 700 m | 755 m at 30 sec | Exceeds 750m standardized reach (approx. 350–375m clear 1-lux visibility). |
In 1lumen's independent test of the SPERAS M4 V3, reviewers noted that its deep reflector produces a tight, intense circular hotspot surrounded by wide, usable spill—allowing you to spot distant objects while still seeing the ground in front of your feet. Furthermore, pairing the M4 V3 with its optional 21700 extension tube boosts sustained post-step-down brightness from ~400 lumens to 800 lumens while doubling total runtime.

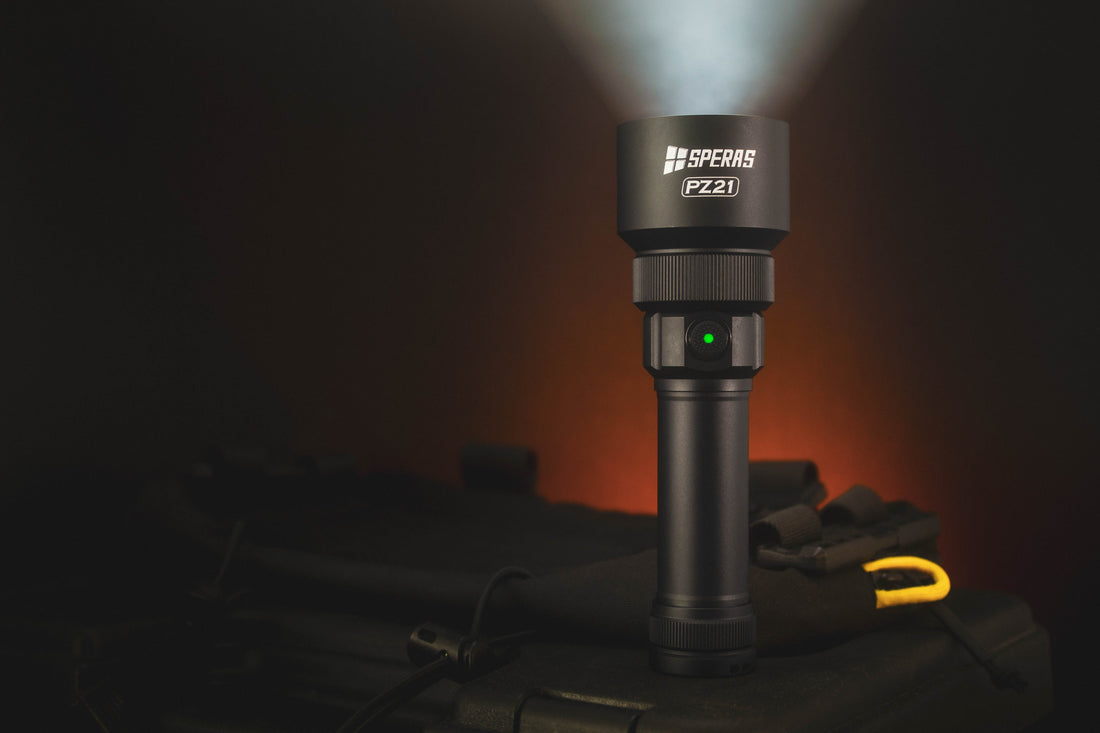

10. Adjustable Zoom Thrower Case Study: SPERAS PZ21 Real Measurements
What changes when your outdoor task requires both a wide floodlight for walking trails and an extreme spotlight for long-range hunting? The SPERAS PZ21 uses a rotary optical zoom head powered by a 21700 battery, rated at 2,700 lumens, 202,500 candela (75.0 cd/lm ratio when focused), and 900 meters of throw.
| Metric (Turbo Mode) | SPERAS Published Rating | 1lumen Measured (at 30 sec) | What the Data Shows |
|---|---|---|---|
| Luminous Flux (Output) | 2,700 lm | 2,543 lm at 30 sec | Strong sustained output at the 30-second ANSI reference point. |
| Peak Beam Intensity (Focused) | 202,500 cd | 266,000 cd at 30 sec | Measured over 104 cd/lm in focused mode—extreme optical concentration. |
| Standardized Throw | 900 m | 1,032 m at 30 sec | Surpassed the 1-kilometer mark in independent testing (~500m 1-lux range). |
As documented in 1lumen's review of the SPERAS PZ21, the larger 48 mm lens head and 151–173 mm body trade pocket compactness for optical versatility—allowing hunters and search teams to transition from a wide carpet of floodlight to a 1,032-meter measured spotlight with a simple twist of the neck.
11. Choosing by Scenario: Recommended Lumens and Candela for EDC, Work, and Hunting
To put these measurements into action, use the comparison table below to match total lumens, peak candela, cd/lm ratio, and optical architecture to your primary use case:
| Model & Optical Type | Max Lumens | Rated / Measured Candela | cd/lm Ratio & Throw | Best Real-World Scenario |
|---|---|---|---|---|
| SPERAS E21 (Balanced Reflector) | 2,000 lm | 25,921 cd rated | ~13.0 cd/lm | 322 m | Work Shifts, Camping & Emergency: Wide, comfortable mixed beam for 10–150m tasks + 21700 USB-C power bank. |
| SPERAS EST16 (Slim Tactical Reflector) | 1,600 lm | 75,625 cd rated | ~47.3 cd/lm | 550 m | Security Patrol & Duty EDC: High candela from a slim 25.4mm tube, hidden USB-C port, and one-step strobe. |
| SPERAS M4 V3 (Compact Deep Reflector) | 2,200 lm (18350) / 2,800 lm (21700) | 122,500 cd rated (142,400 cd measured) | ~55.7 cd/lm | 700 m (755 m measured) | Pocket Thrower & Modular Search: 85.6mm daily pocket carry that upgrades to a 21700 powerhouse. |
| SPERAS PZ21 (Rotary Aspheric Zoom) | 2,700 lm | 202,500 cd rated (266,000 cd measured) | ~75.0 cd/lm | 900 m (1,032 m measured) | Outdoor Hunting & Property Scanning: Seamless flood-to-spot zoom for close trail walking and 450m+ target spotting. |
12. Frequently Asked Questions About Flashlight Lumens, Candela, and Throw
References & Technical Standards
- National Institute of Standards and Technology (NIST): Realization of the Candela & Luminous Intensity — Official SI photometry reference defining luminous flux (lumens) and directional intensity (candela).
- ANSI/PLATO FL 1 Flashlight Basic Performance Standard — Industry standard defining the 30-second measurement window, 0.25-lux beam distance formula, and peak beam intensity testing.
- 1lumen Independent Review: SPERAS M4 V3 Lumen, Candela & Runtime Measurements — Sourced for 30-second integrating-sphere output (2,158 lm) and lux-meter throw testing (142,400 cd / 755 m).
- 1lumen Independent Review: SPERAS PZ21 Zoomable Hunting Flashlight Evaluation — Sourced for focused spot candela (266,000 cd / 1,032 m) and physical dimension measurements.
- 1lumen Independent Review: SPERAS EST16 Tactical Flashlight Test — Sourced for compact tactical beam profile and charging evaluation.
- 1lumen Independent Review: SPERAS E21 21700 Flashlight & Power Bank Test — Sourced for balanced beam performance and 21700 runtime metrics.
